Honda FourTrax Rancher 4x4 Camo LEITZ SPORTS CENTER, INC. Sault Ste-Marie, MI (906) 632-8291

Showcase Product Detail

Showroom » Honda » FourTrax Rancher 4x4 Camo

	Starting At: $6,399.00

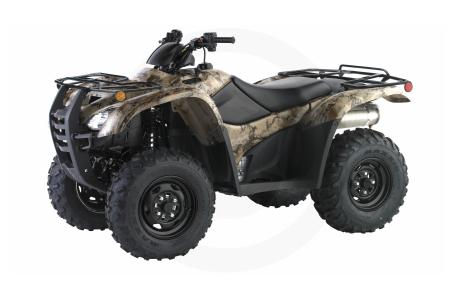

2010 Honda FourTrax Rancher 4x4 Camo

Request a Quote

Financing Calculator

Financing Form

Click on a thumbnail to view larger image.

View All Thumbnails Hide Thumbnails

Request a Quote

Financing Calculator

Financing Form

OEM Overview
Specifications
Compare Models
Current Promotions

Overview

Print Brochure

Engine

Engine Type: 420cc liquid-cooled fuel-injected OHV wet-sump longitudinally mounted single-cylinder four-stroke
Bore And Stroke: 86.5mm x 71.5mm
Induction: Keihin 34mm throttle-body fuel-injection system
Ignition: Full transistor with electronic advance
Starter: Electric with optional auxiliary recoil

Drive Train

Clutch: Automatic
Transmission: Five-speed with Reverse
Driveline: Direct front and rear driveshafts

Chassis / Suspension / Brakes

Front Suspension: Independent double-wishbone; 6.3 in. travel
Rear Suspension: Swingarm with single shock; 6.3 in. travel
Front Brakes: Dual hydraulic disc
Rear Brakes: Sealed mechanical drum
Front Tires: 24 x 8-12
Rear Tires: 24 x 10-11

Dimensions

Length: 80.9 in.
Width: 46.1 in.
Height: 45.1 in.
Wheelbase: 49.2 in.
Seat Height: 32.4 in.
Ground Clearance: 6.5 in.
Turning Radius: 10.5 lbs.
Curb Weight: 584 lbs (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
Fuel Capacity: 3.5 gal. (including 1.0 gal. reserve)

Other

Note: No operator under age 16. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.
Emissions: Meets current EPA and CARB off-road emissions standards.
Available Colors: Camo

Factory Warranty Information

Duration: One year
Description: Coverage of defects in materials and workmanship

Specifications

Engine
Engine Type	420cc liquid-cooled fuel-injected OHV wet-sump longitudinally mounted single-cylinder four-stroke
Displacement	420 cc
Bore x Stroke	86.5mm x 71.5mm
Cylinders	Single
Engine Cooling	Liquid
Fuel System	Keihin 34mm throttle-body fuel-injection system
Starting System	Ignition: Full transistor with electronic advance; Starter: Electric with optional auxiliary recoil
Chassis
Front Suspension	Independent double-wishbone; 6.3 in. travel
Front Travel	6.3 in.
Front Brake Type	Dual hydraulic disc
Front Tires	24 x 8-12
Rear Suspension	Swingarm with single shock; 6.3 in. travel
Rear Travel	6.3 in.
Rear Brake Type	Sealed mechanical drum
Rear Tires	24 x 10-11
Dimensions/Capacities
Dry Weight	584 lbs (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
Fuel Capacity	3.5 gal. (including 1.0 gal. reserve)
Ground Clearance	6.5 in.
Machine Dimensions (LxWxH)	Length: 80.9 in.; Width: 46.1 in.; Height: 45.1 in.
Wheelbase	49.2 in.
Drive Train
Drive Train	Clutch: Automatic; Driveline: Direct front and rear driveshafts
Transmission	Five-speed with Reverse
General
Colors	Camo
Warranty	Duration: One year; Description: Coverage of defects in materials and workmanship

Compare Models

Chassis

Year	2010
Manufacturer	Honda
Model	FourTrax Rancher 4x4 Camo
Style	Utility
MSRP*	$6,399.00
Front Suspension	Independent double-wishbone; 6.3 in. travel
Front Travel	6.3 in.
Front Brake Type	Dual hydraulic disc
Front Tires	24 x 8-12
Rear Suspension	Swingarm with single shock; 6.3 in. travel
Rear Travel	6.3 in.
Rear Brake Type	Sealed mechanical drum
Rear Tires	24 x 10-11
Frame
Dimensions/Capacities
Dry Weight	584 lbs (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
Front Rack Capacity
Rear Rack Capacity
Towing Capacity
Fuel Capacity	3.5 gal. (including 1.0 gal. reserve)
Ground Clearance	6.5 in.
Machine Dimensions (LxWxH)	Length: 80.9 in.; Width: 46.1 in.; Height: 45.1 in.
Wheelbase	49.2 in.
Drive Train
Drive Train	Clutch: Automatic; Driveline: Direct front and rear driveshafts
Final Drive
Transmission	Five-speed with Reverse
Engine
Engine Type	420cc liquid-cooled fuel-injected OHV wet-sump longitudinally mounted single-cylinder four-stroke
Displacement	420 cc
Bore x Stroke	86.5mm x 71.5mm
Cylinders	Single
Engine Cooling	Liquid
Fuel System	Keihin 34mm throttle-body fuel-injection system
Starting System	Ignition: Full transistor with electronic advance; Starter: Electric with optional auxiliary recoil
Alternator
General
Speedometer
Tachometer
Odometer
Lighting
Colors	Camo
Warranty	Duration: One year; Description: Coverage of defects in materials and workmanship

Current Promotions

There are currently no promotions available for this product.
