Honda FourTrax Rincon LEITZ SPORTS CENTER, INC. Sault Ste-Marie, MI (906) 632-8291

Showcase Product Detail

Showroom » Honda » FourTrax Rincon

	Starting At: $8,599.00

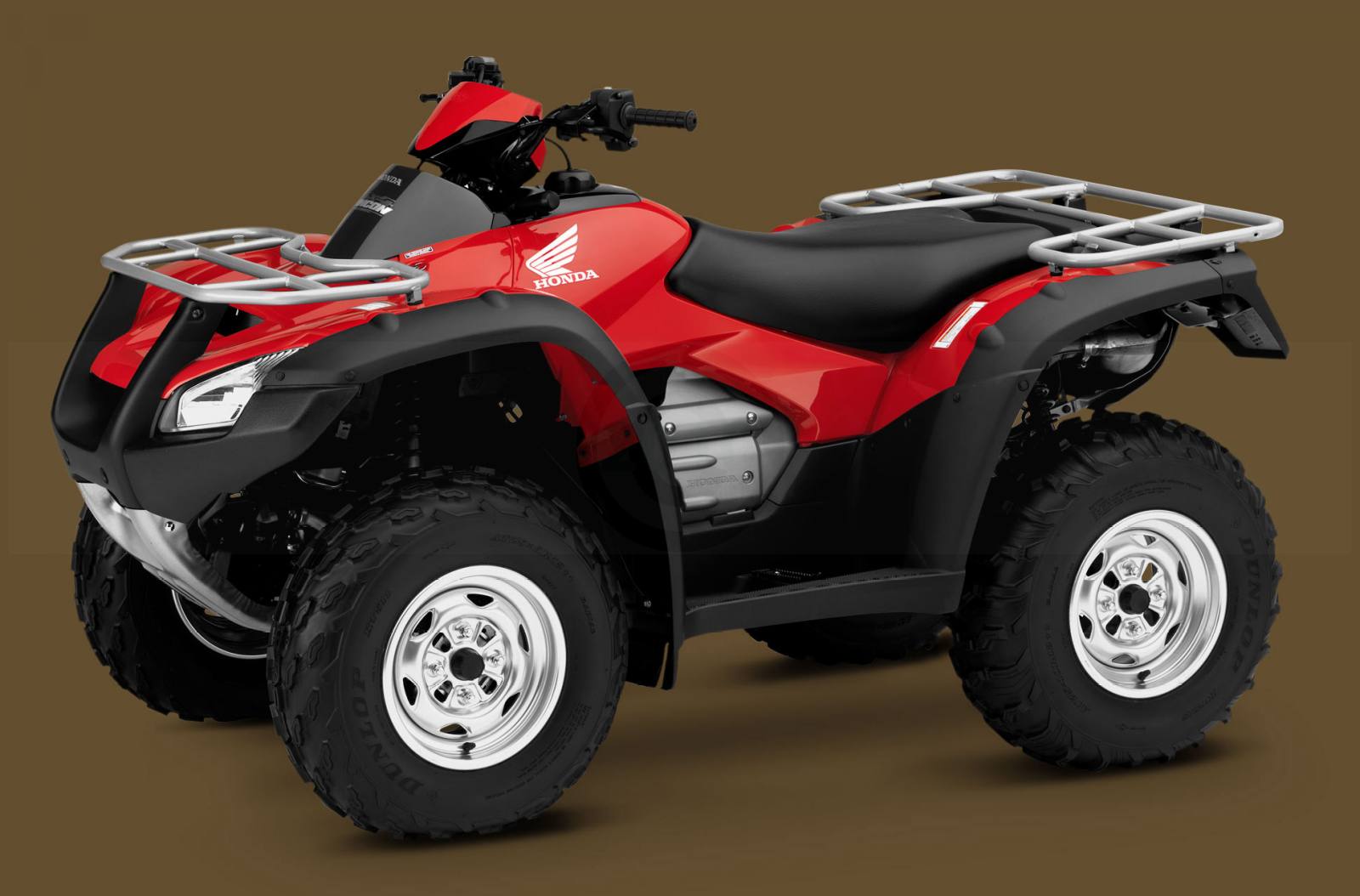

2010 Honda FourTrax Rincon

Request a Quote

Financing Calculator

Financing Form

Red

Click on a thumbnail to view larger image.

View All Thumbnails Hide Thumbnails

Request a Quote

Financing Calculator

Financing Form

OEM Overview
Specifications
Compare Models
Current Promotions

Overview

Print Brochure

Engine

Engine Type: 675cc liquid-cooled OHV semi-dry-sump longitudinally mounted single-cylinder four-stroke
Bore And Stroke: 102.0mm x 82.6mm
Induction: Electronic fuel injection (PGM-FI): 40mm throttle bodies
Ignition: Full-Transistorized type with electronic advance
Starter: Electric with auxiliary recoil

Drive Train

Transmission: Automatic with hydraulic torque converter, three forward gears, Reverse, and electronic controls
Driveline: Direct front and rear driveshafts with TraxLok and Torque-Sensitive Front Differential

Chassis / Suspension / Brakes

Front Suspension: Independent double-wishbone; 6.9-in. travel
Rear Suspension: Independent double-wishbone; 8.0-in. travel
Front Brakes: Dual hydraulic 180.0mm disc
Rear Brake: Single hydraulic disc
Front Tires: 25 x 8-12 radial
Rear Tires: 25 x 10-12 radial

Dimensions

Length: 83.2 in.
Width: 46.8 in.
Height: 47.5 in.
Wheelbase: 50.8 in.
Seat Height: 34.5 in.
Ground Clearance: 10.0 in.
Turning Radius: 10.8 ft.
Curb Weight: 648 lbs. (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
Fuel Capacity: 4.3 gal., including 1.2-gal. reserve

Other

Note: No operator under age 16. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.
Emissions: Meets current CARB off-road emissions standards.
Available Colors: Red, Olive

Factory Warranty Information

Duration: 1 year
Description: Transferable, unlimited mileage limited warranty; extended coverage available with a Honda Protection Plan

Specifications

Engine
Engine Type	675cc liquid-cooled OHV semi-dry-sump longitudinally mounted single-cylinder four-stroke
Displacement	675cc
Bore x Stroke	102.0mm x 82.6mm
Cylinders	Single
Engine Cooling	Liquid
Fuel System	Electronic fuel injection (PGM-FI): 40mm throttle bodies
Starting System	Electric with auxiliary recoil
Chassis
Front Suspension	Independent double-wishbone; 6.9-in. travel
Front Travel	6.9 in.
Front Brake Type	Dual hydraulic 180.0mm disc
Front Tires	25 x 8-12 radial
Rear Suspension	Independent double-wishbone; 8.0-in. travel
Rear Travel	8.0 in.
Rear Brake Type	Single hydraulic disc
Rear Tires	25 x 10-12 radial
Dimensions/Capacities
Dry Weight	648 lbs. (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
Fuel Capacity	4.3 gal., including 1.2-gal. reserve
Ground Clearance	10.0 in.
Machine Dimensions (LxWxH)	Length : 83.2 in.; Width: 46.8 in.; Height: 47.5 in.
Wheelbase	50.8 in.
Drive Train
Drive Train	Direct front and rear driveshafts with TraxLok and Torque-Sensitive Front Differential
Transmission	Automatic with hydraulic torque converter, three forward gears, Reverse, and electronic controls
General
Colors	Red, Olive
Warranty	Duration : 1 year; Description: Transferable, unlimited mileage limited warranty; extended coverage available with a Honda Protection Plan

Compare Models

Chassis

Year	2010
Manufacturer	Honda
Model	FourTrax Rincon
Style	Utility
MSRP*	$8,599.00
Front Suspension	Independent double-wishbone; 6.9-in. travel
Front Travel	6.9 in.
Front Brake Type	Dual hydraulic 180.0mm disc
Front Tires	25 x 8-12 radial
Rear Suspension	Independent double-wishbone; 8.0-in. travel
Rear Travel	8.0 in.
Rear Brake Type	Single hydraulic disc
Rear Tires	25 x 10-12 radial
Frame
Dimensions/Capacities
Dry Weight	648 lbs. (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
Front Rack Capacity
Rear Rack Capacity
Towing Capacity
Fuel Capacity	4.3 gal., including 1.2-gal. reserve
Ground Clearance	10.0 in.
Machine Dimensions (LxWxH)	Length : 83.2 in.; Width: 46.8 in.; Height: 47.5 in.
Wheelbase	50.8 in.
Drive Train
Drive Train	Direct front and rear driveshafts with TraxLok and Torque-Sensitive Front Differential
Final Drive
Transmission	Automatic with hydraulic torque converter, three forward gears, Reverse, and electronic controls
Engine
Engine Type	675cc liquid-cooled OHV semi-dry-sump longitudinally mounted single-cylinder four-stroke
Displacement	675cc
Bore x Stroke	102.0mm x 82.6mm
Cylinders	Single
Engine Cooling	Liquid
Fuel System	Electronic fuel injection (PGM-FI): 40mm throttle bodies
Starting System	Electric with auxiliary recoil
Alternator
General
Speedometer
Tachometer
Odometer
Lighting
Colors	Red, Olive
Warranty	Duration : 1 year; Description: Transferable, unlimited mileage limited warranty; extended coverage available with a Honda Protection Plan

Current Promotions

There are currently no promotions available for this product.
