Honda FourTrax Rancher AT Camo LEITZ SPORTS CENTER, INC. Sault Ste-Marie, MI (906) 632-8291

Showcase Product Detail

Showroom » Honda » FourTrax Rancher AT Camo

	Starting At: $7,299.00

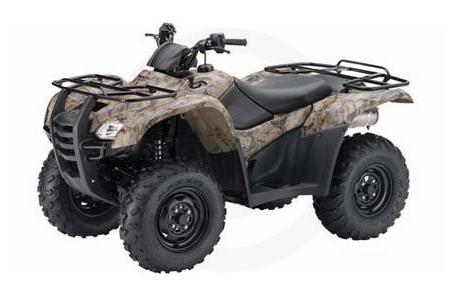

2010 Honda FourTrax Rancher AT Camo

Request a Quote

Financing Calculator

Financing Form

Request a Quote

Financing Calculator

Financing Form

OEM Overview
Specifications
Compare Models
Current Promotions

Overview

Print Brochure

Engine

Engine Type: 420cc liquid-cooled OHV semi-drysump longitudinally mounted single-cylinder fourstroke
Bore And Stroke: 86.5mm x 71.5mm
Induction: Programmed Fuel Injection (PGM-FI), 34mm throttle bodies
Ignition: Full-transistorized type with electronic advance
Starter: Electric with optional auxiliary recoil

Drive Train

Transmission: Automatic/ESP five-speed with Reverse
Driveline: Direct front and rear driveshaftsts

Chassis / Suspension / Brakes

Front Suspension: Independent double-wishbone; 6.3 in. travel
Rear Suspension: Independent double-wishbone; 6.3 in. travel
Front Brakes: Dual hydraulic disc
Rear Brakes: Single hydraulic disc
Front Tires: 24 x 8-12
Rear Tires: 24 x 10-11

Dimensions

Length: 80.9 in.
Width: 46.1 in.
Height: 45.1 in.
Wheelbase: 49.4 in.
Seat Height: 32.4 in.
Ground Clearance: 9.1 in.
Turning Radius: 10.5 ft.
Curb Weight: 623 pounds (Includes all standard equipment, required fluids and a full tank of fuel ready to ride. Recommended for riders 16 years of age and older.)
Fuel Capacity: 3.5 gal. (including 1.0 gal. reserve)

Other

Note: No operator under age 16. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.
Available Colors: Camo

Factory Warrarnty Information

Duration: 1 year
Description: 1 year - Transferable, unlimited mileage limited warranty; extended coverage available with a Honda Protection Plan.

Specifications

Engine
Engine Type	420cc liquid-cooled OHV semi-drysump longitudinally mounted single-cylinder fourstroke
Displacement	420 cc
Bore x Stroke	86.5mm x 71.5mm
Cylinders	Single
Engine Cooling	Liquid
Fuel System	Programmed Fuel Injection (PGM-FI), 34mm throttle bodies
Starting System	Ignition: Full-transistorized type with electronic advance; Starter: Electric with optional auxiliary recoil
Chassis
Front Suspension	Independent double-wishbone; 6.3 in. travel
Front Travel	6.3 in.
Front Brake Type	Dual hydraulic disc
Front Tires	24 x 8-12
Rear Travel	6.3 in.
Rear Suspension	Independent double-wishbone; 6.3 in. travel
Rear Brake Type	Single hydraulic disc
Rear Tires	24 x 10-11
Dimensions/Capacities
Dry Weight	623 lbs. (Includes all standard equipment, required fluids and a full tank of fuel ready to ride. Recommended for riders 16 years of age and older.
Fuel Capacity	3.5 gal. (including 1.0 gal. reserve)
Ground Clearance	9.1 in.
Machine Dimensions (LxWxH)	Length: 80.9 in.; Width: 46.1 in.; Height: 45.1 in.
Wheelbase	49.4 in.
Drive Train
Drive Train	Direct front and rear driveshaftsts
Transmission	Automatic/ESP five-speed with Reverse
General
Colors	Camo
Warranty	Duration: 1 year; Description: 1 year - Transferable, unlimited mileage limited warranty; extended coverage available with a Honda Protection Plan.

Compare Models

Chassis

Year	2010
Manufacturer	Honda
Model	FourTrax Rancher AT Camo
Style	Utility
MSRP*	$7,299.00
Front Suspension	Independent double-wishbone; 6.3 in. travel
Front Travel	6.3 in.
Front Brake Type	Dual hydraulic disc
Front Tires	24 x 8-12
Rear Suspension	Independent double-wishbone; 6.3 in. travel
Rear Travel	6.3 in.
Rear Brake Type	Single hydraulic disc
Rear Tires	24 x 10-11
Frame
Dimensions/Capacities
Dry Weight	623 lbs. (Includes all standard equipment, required fluids and a full tank of fuel ready to ride. Recommended for riders 16 years of age and older.
Front Rack Capacity
Rear Rack Capacity
Towing Capacity
Fuel Capacity	3.5 gal. (including 1.0 gal. reserve)
Ground Clearance	9.1 in.
Machine Dimensions (LxWxH)	Length: 80.9 in.; Width: 46.1 in.; Height: 45.1 in.
Wheelbase	49.4 in.
Drive Train
Drive Train	Direct front and rear driveshaftsts
Final Drive
Transmission	Automatic/ESP five-speed with Reverse
Engine
Engine Type	420cc liquid-cooled OHV semi-drysump longitudinally mounted single-cylinder fourstroke
Displacement	420 cc
Bore x Stroke	86.5mm x 71.5mm
Cylinders	Single
Engine Cooling	Liquid
Fuel System	Programmed Fuel Injection (PGM-FI), 34mm throttle bodies
Starting System	Ignition: Full-transistorized type with electronic advance; Starter: Electric with optional auxiliary recoil
Alternator
General
Speedometer
Tachometer
Odometer
Lighting
Colors	Camo
Warranty	Duration: 1 year; Description: 1 year - Transferable, unlimited mileage limited warranty; extended coverage available with a Honda Protection Plan.

Current Promotions

There are currently no promotions available for this product.
